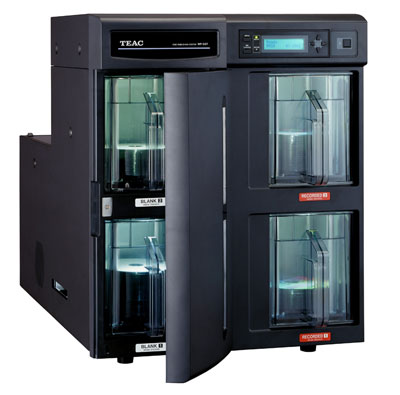

TEAC AP-55 Discathlon Printer

AP55_200
System Part No. Download Web Images
(right-click, save as)
AP-55 Discathlon Printer DISCATHLON/1P55
DISCATHLON/2P55
200px • 400px • 800px

For hi-res print images: Log on to Microboards' FTP Artwork website at http://artwork.microboards.com.
Follow the instructions on screen to download hi-res PSD, TIF, and JPG versions of all images.

Product Copy for AP-55 Discathlon Printer

The TEAC AP-55 automatically prints up to 300 discs using high-resolution thermal dye-sublimation printing technology. The on-demand system offers the ultimate in high-precision robotic disc printing. Using scratch-resistant, fade-resistant, water-proof media, the end result is a beautiful professional disc.

Product Features for AP-55 Discathlon Printer
  • Fully automated on-demand disc printer
  • Install up to 2 high-resolution thermal dye-sublimation disc printers
  • Dye-sublimation / Thermal-fusion disc printing
  • Run two CD/DVD jobs simultaneously
  • 300 disc capacity
  • Fully-enclosed dust-resistant design
  • TEAC-engineered robotics technology ensures accurate picking and disc handling
  • Supports edge-to-edge borderless disc printing
  • Connects via USB 2.0 port
Product Specifications for AP-55 Discathlon Printer
Printing Method Thermal re-transfer
Media TEAC-supported thermal printable media
Supported Interface USB 2.0
Print Speed < 60 seconds/full color disc
Print Resolution 400 dpi
Printer Options 1 or 2 printers
1 Printer Part No: DISCATHLON/1P55
2 Printer Part No: DISCATHLON/2P55
Print Capacity Color ribbon: About 500 discs
Black ribbon: About 2000 discs
Re-transfer ribbon: About 500 discs
Loader Capacity Up to 300 discs
Disc Loading Method Designated robotic mechanism
Supported OS Windows 2000, XP
Operating Environments Temperature: 15 - 30 C
Humidity: 30 - 70% (no condensation)
Power Requirements 100VAC - 240VAC ±10%, 50/60Hz
External Dimensions 20" W x 30.55" D x 21.73" H for 1 printer installed
20" W x 30.55" D x 22.52" H for 2 printers installed
Weight 125 lbs. with 1 printer
175 lbs. with 2 printers
